Micas Networks
Mycas
Micas Networks is a US-based network equipment manufacturer that offers commercial switch products in addition to open networking products, including white Box switches. The company is also focused on developing high-speed, high-capacity switch products for next-generation data center networks.
Features of Micas Networks
1. Full lineup from 1G to 800G
・Supports a wide range of speeds, from 800G for AI/ML, to 400G/200G/100G for data centers, and up to 1G for enterprise use.
2. Compatible with SONiC / HULKOS
・SONiC (Community / Enterprise) compatible
- Micas developed its own OS, "HULKOS".
3. Cutting-edge technologies for AI/ML
・Tomahawk 5-based 800G switch
- Implementation of Co-Packaged Optics (CPO) enables low power consumption, low cost, and low latency.
4. High-quality genuine transceiver
We offer 10G / 25G / 100G / 400G optical modules.
- Achieves high compatibility and stability when combined with the Switch.
5. High supply capacity through our own factories
- We implement R&D, manufacturing, and quality control in an integrated manner to ensure stable supply and short delivery times.
*HULKOS is an operating system developed by Micas Networks specifically for network equipment.
This OS is built with separate components, allowing it to be compatible with a variety of devices and systems. Furthermore, it is designed to ensure secure operation and management of network security.

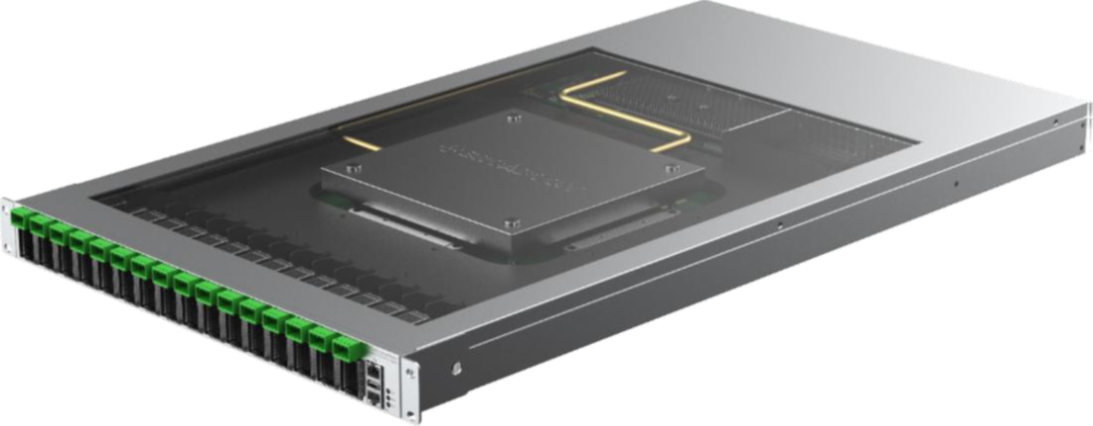

CPO Switch (Co-Packaged Optics Switch)
What is a CPO switch?
CPO switches are a next-generation network switch technology that integrates an ASIC (Application-Specific Integrated Circuit) for data switching and an optical engine for handling optical signals within the same package.
Traditionally, optical transceivers were plugged into external ports on the switch, and signals were transmitted via long cables. However, CPO places the optical function right next to the chip. Furthermore, it eliminates the need for DSP (Digital Signal Processing), which was required for conventional optical transceivers.
Key Benefits
- Significantly reduces power consumption (maximum 50% (End)
Low latency, high throughput
- Improved rack space efficiency through increased density
・ DSP Cost reduction due to elimination of unnecessary items
Light and electricity 1 By packing everything into a single package, this product overcomes the limitations of power consumption and communication latency that were previously posed to high-speed data centers, making it a noteworthy product for such environments.
Switch products
We offer a wide range of white Box and commercial switch products, from 1G to 800G, for data centers, AI clusters, and enterprise networks.
Each product is compatible with operating systems such as SONiC and HULKOS.
800G Switch (for AI/ML)
400G Switch (for Cloud and Data Centers)
M2-S6920-32QC2X（1RU / 32×400G）
M2-S6930-64QC（4RU / 64×400G）
For HULKOS-supported switches, please see here.
*HULKOS is an operating system developed by Micas Networks specifically for network equipment.
200G Switch (for Cloud and Data Centers)
M2-S6520-24DC8QC（1RU / 24×200G + 8×400G）
For HULKOS-supported switches, please see here.
*HULKOS is an operating system developed by Micas Networks specifically for network equipment.
100G Switch (for Cloud and Data Centers)
M2-W6510-32C (1RU / 32×100G)
M2-S6510-32C (1RU/32×100G)
*No image available
M2-W6520-48C8QC (1RU / 48×100G + 8×400G)
M2-S6920-4S
For HULKOS-supported switches, please see here.
*HULKOS is an operating system developed by Micas Networks specifically for network equipment.
10G/25G Switch (for Cloud and Data Centers)
|
model number |
standard |
fiber |
distance |
Purpose |
|
10G-SFP-SR |
SR |
MMF |
300m |
DC short-distance use |
|
10G-SFP-LR |
LR |
SMF |
10km |
For enterprise networks |
M2-S6510-48V8C（1RU / 48×25G + 8×100G）
For HULKOS-supported switches, please see here.
*HULKOS is an operating system developed by Micas Networks specifically for network equipment.
1G Switch (Enterprise Grade)
M2-S6000-48GT4X（1RU / 48×1G + 4×10/25G）
For HULKOS-supported switches, please see here.
*HULKOS is an operating system developed by Micas Networks specifically for network equipment.
Optical module products
We offer a wide range of optical module products from 10G to 400G for data centers, AI clusters, cloud providers, and enterprise networks.
Supporting a wide range of transmission distances, from short-range multimode (MMF) to long-range single-mode (SMF), it can be used in a broad range of applications, including data center Spine/Leaf configurations, AI/HPC clusters, and access / aggregation layers in enterprise networks.
Main lineup
• 400G optical module (for AI/HPC and data centers)
• 100G optical module (for data centers and enterprise networks)
• 25G optical module (for enterprise data center/ server connection)
・ 10G optical module (for enterprise networks)
400G Optical Module (for AI/HPC clusters/Spine-Leaf configurations)
QSFP DD (QDD)
|
model number |
standard |
fiber |
distance |
Purpose |
|
400G‑QDD‑SR8 |
SR8 |
MMF |
100m |
8 parallel lanes, designed for short distances. |
|
400G‑QDD‑DR4 |
DR4 |
SMF |
500m |
4-lane parallel layout, suitable for medium distances. |
|
400G‑QDD‑FR4 |
FR4 |
SMF |
2km |
4-wavelength CWDM, for long distances |
OSFP
|
model number |
standard |
fiber |
distance |
Purpose |
|
400G-OSFP-VR4 |
VR4 |
MMF |
30〜50m |
Short distances within a rack and between adjacent racks |
|
400G‑OSFP‑DR4 |
DR4 |
SMF |
500m |
For mid-range (Leaf–Spine) use within DC |
400G-OSFP-VR4 400G-OSFP-DR4
QSFP112
|
model number |
standard |
fiber |
distance |
Purpose |
|
400G-Q112-VR4 |
VR4 |
MMF |
100m |
For short-distance DC wiring |
|
400G-Q112-DR4 |
DR4 |
SMF |
500m |
For medium-distance DC wiring |
400G-Q112-VR4 400G-Q112-DR4
100G Optical Module (for Data Center/Enterprise Networks)
|
model number |
standard |
fiber |
distance |
Purpose |
|
100G-QSFP-SR4 |
SR4 |
MMF |
100m |
For short-distance connectivity within data centers |
|
100G‑QSFP‑CWDM4 |
CWDM4 |
SMF |
2km |
Suitable for medium-distance connections between racks and floors. |
|
100G‑QSFP‑LR4 |
LR4 |
SMF |
10km |
For inter-site and campus networks |
25G Optical Module (for enterprise data center/server connectivity)
|
model number |
standard |
fiber |
distance |
Purpose |
|
25G-SFP-SR |
SR |
MMF |
100m |
For server connections |
10G Optical Module (for Data Center/Enterprise Networks)
10G-SFP-SR 10G-SFP-LR
Click here for list of materials
In addition to introducing products handled by Macnica,
We publish materials related to open networking, such as BGP cross network automatic construction files and network operation test evaluation reports.
Click here for details
Manufacturer basic information
| company name | Micas Networks Inc. |
|---|---|
| main office location |
San Jose, USA |
| Established | 2023 |
| Company Overview |
Micas Networks is a specialist manufacturer of open networking switches headquartered in San Jose, California. They offer a full lineup from 1G to 800G for AI/ML, cloud, and hyperscale data center applications. In addition to switches, they also provide 10G to 400G transceivers to help optimize the entire network. |
| website | https://micasnetworks.com/ |
