10G Optical Module
For data centers / enterprise networks
This is a high-density, low-power 10G optical module.
It can be used in data centers and campus networks, providing low-cost, efficient, and high-speed connectivity between switches, routers, servers, and network interface cards (NICs).
It can be used in data centers and campus networks, providing low-cost, efficient, and high-speed connectivity between switches, routers, servers, and network interface cards (NICs).
product image
Product lineup
| model | form factor | Connector type | cable type | Maximum Transmission Distance | Data diagnostics (DDM/DOM) | Power consumption [W] | Wavelength [nm] | Transmit power [dBm] | Receiving sensitivity [dBm] |

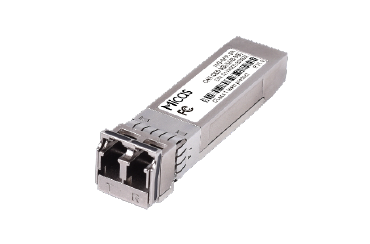

| 10G‑SFP‑SR | SFP+ | Duplex LC | MMF | 100m (OM3) / 300m (OM4) | can be | ≤1.5W | 850nm | −7.3dBm ～ −1dBm | < −11.1dBm |

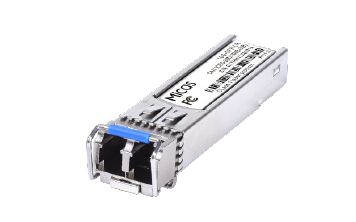

| 10G‑SFP‑LR | SFP+ | Duplex LC | SMF | 10km | can be | ≤1.5W | 1310nm | −8.2dBm ～ 0.5dBm | < −12.6dBm |
