400G Optical Module

For AI/HPC clusters/Spine-Leaf configurations

This is a next-generation 400G optical module that achieves low power consumption and a compact design.
We offer a wide range of services, from large-scale data centers and high-performance computing (HPC) networks to essential telecommunications equipment for businesses.
It provides cost-effective, efficient, and high-speed interconnection between servers and switches in data centers.

QSFP DD (QDD)

product image

Product lineup

model	form factor	Connector type	cable type	Maximum Transmission Distance	Data diagnostics (DDM/DOM)	Power consumption [W]	Wavelength [nm]	Transmit power [dBm]	Receiving sensitivity [dBm]

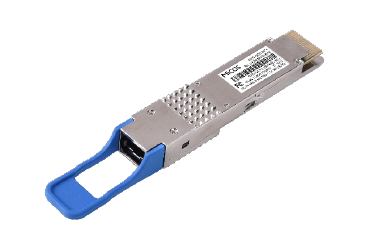

400G‑QDD‑DR4	QSFP‑DD	MPO 1×12	SMF	500m	can be	≤12W	(1304.5, 1317.5)	−2.9dBm ～ 4dBm	< −3.9dBm

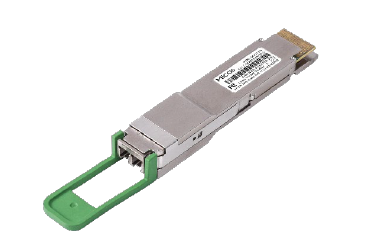

400G‑QDD‑FR4	QSFP‑DD	Duplex LC	SMF	2km	can be	≤12W	(1264.5,1277.5), (1284.5,1297.5), (1304.5,1317.5), (1324.5,1337.5)	−3.2dBm ～ 4.4dBm	< −4.6dBm

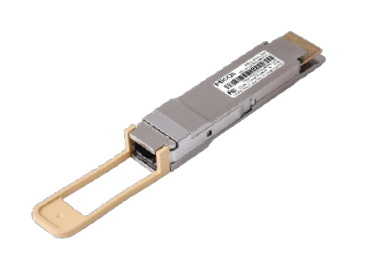

400G‑QDD‑SR8	QSFP‑DD	MPO 1×16	MMF	100m (OM4)	can be	≤10W	850nm	−6.5dBm ～ 4dBm	< −6.5dBm

OSFP

product image

Product lineup

model	form factor	Connector type	cable type	Maximum Transmission Distance	Data diagnostics (DDM/DOM)	Power consumption [W]	Wavelength [nm]	Transmit power [dBm]	Receiving sensitivity [dBm]

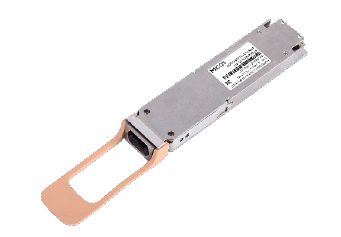

400G‑OSFP‑VR4	OSFP	MPO 1×12	MMF (OM3/OM4)	OM3: 30m / OM4: 50m	can be	Approximately 8-9W	850nm (VCSEL)	−6.5dBm ～ 4dBm	< −6.5dBm
400G‑OSFP‑DR4	OSFP	MPO 1×12	SMF (OS2)	500m	can be	Approximately 10-12W	1310nm (EML)	−2.9dBm ～ 4dBm	< −3.9dBm

QSFP112

product image

Product lineup

model	form factor	Connector type	cable type	Maximum Transmission Distance	DDM/DOM	Power consumption [W]	Wavelength [nm]	Transmit power [dBm]	Receiving sensitivity [dBm]

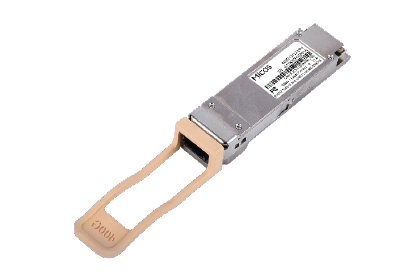

400G‑Q112‑VR4	Q112	MPO 1×12	MMF	30–50m（OM3/OM4）	can be	Approximately 8-9W	850nm（VCSEL）	−6.5 ～ 4	< −6.5

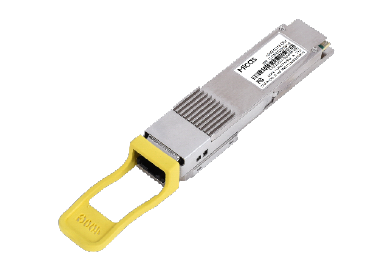

400G‑Q112‑DR4	Q112	MPO 1×12	SMF	500m	can be	Approximately 10-12W	1310nm（EML）	−2.9 ～ 4	< −3.9
