100G Optical Module

For data centers / enterprise networks

This is a next-generation 100G optical module that achieves low power consumption and a compact design.
We offer a wide range of services, from large-scale data centers and high-performance computing (HPC) networks to essential telecommunications equipment for businesses.
It provides cost-effective, efficient, and high-speed interconnection between servers and switches in data centers.

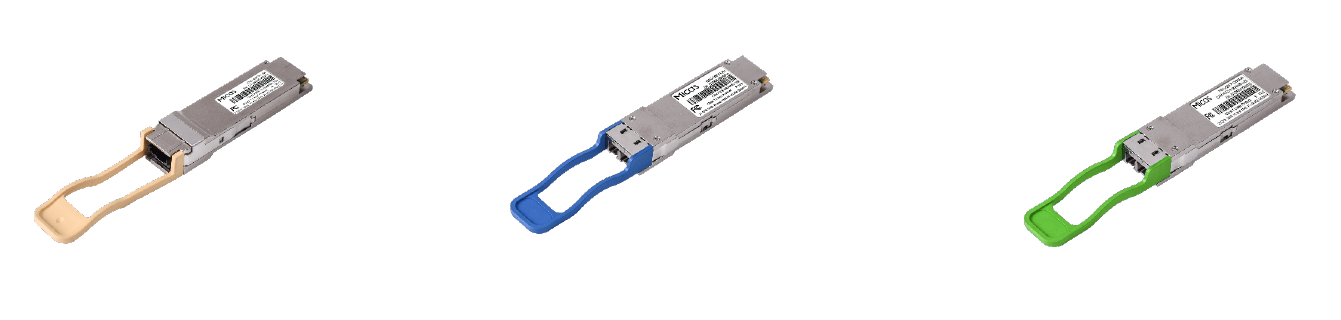

product image

Product lineup

model	form factor	Connector type	cable type	Maximum Transmission Distance	Data diagnostics (DDM/DOM)	Power consumption [W]	Wavelength [nm]	Transmit power [dBm]	Receiving sensitivity [dBm]
100G‑QSFP‑SR4	QSFP28	MPO 1×12	MMF	70m (OM3)　/ 100m (OM4)	can be	≤3.5W	850nm	−8.4dBm ～ 2.4dBm	< −5.2dBm
100G‑QSFP‑LR4	QSFP28	Duplex LC	SMF	10km	can be	≤4.5W	(1294.53,1296.59), (1299.02,1301.09), (1303.54,1305.63), (1308.09,1310.19)	−4.3dBm ～ +4.5dBm	< −8.6dBm
100G‑QSFP‑CWDM4	QSFP28	Duplex LC	SMF	2km	can be	≤3.5W	(1264.5–1277.5), (1284.5–1297.5), (1304.5–1317.5), (1324.5–1337.5)	−6.5dBm ～ 2.5dBm	< −10dBm

Inquiries and quotes here
