Micas Networks
Mycas
25G Optical Module
For enterprise data center / server connections
This is a next-generation 25G optical module that achieves low power consumption and a compact design.
We offer a wide range of services, from large-scale data centers and high-performance computing (HPC) networks to essential telecommunications equipment for businesses.
It provides cost-effective, efficient, and high-speed interconnection between servers and switches in data centers.

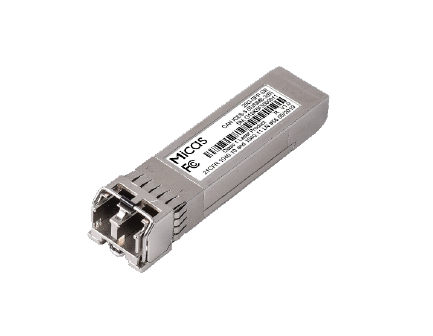

product image
Product lineup
| model | form factor | Connector type | cable type | Maximum Transmission Distance | Data diagnostics (DDM/DOM) | Power consumption [W] | Wavelength [nm] | Transmit power [dBm] | Receiving sensitivity [dBm] |
| 25G‑SFP‑SR | SFP28 | Duplex LC | MMF | 100m (OM4) / 70m (OM3) | can be | ≤1.5W | 850nm | −8.4dBm ～ 2.4dBm | < −10.3dBm |
