DELTA ELECTRONICS
Delta Electronics Co., Ltd.
![[DELTA]AGCV208S/AGCV208SV1](/business/network/manufacturers/delta/image/delta_agcv208s_agcv208sv1_headbn.png)
It is a carrier grade white Box switch.
It is suitable for various layers where white Box utilization is expected, such as mobile access and aggregation routers.
This product uses Broadcom's DNX switch IC and supports wide bandwidth and deep buffer.
Product Summary
- Cell Site Gateway routers for telecom networks
- Port Configuration 4x 1GbE BASE-T, 4x 10GbE SFP+, 8x 25GbE SFP28+, 2x 100GbE QSFP28
- Up to 300Gbps bandwidth configurable to multi-rate 1/10G/25G/100GbE

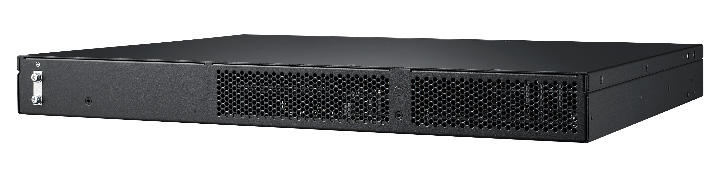

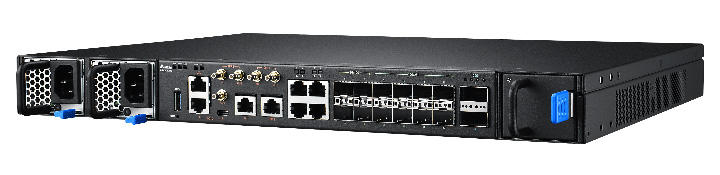

Product appearance
Product Specifications
| Ports | Key parts |
| 4 x 1GbE BASE-T ports | Switching Chip: BCM88470 Qumran-AX |
| 4x10GbE SFP+ ports | Processor: Intel Denverton C3508 |
| 8 x 25GbE SFP28 ports | Memory: 8GB DDR4 x 2 (AGCV208S) |
| 2x 100GbE QSFP28 ports | 16GBx2 DDR4 (AGCV208SV1) |
| 1x RJ45 OOB Management port | SPI-Flash: 32MB |
| 1x RJ45 and 1x USB-C console port | Storage: 128GB m.2.SSD |
| 1 x USB port | BMC: AST2520 |
| 1x RJ45 BITS and 1x RJ45 ToD | |
| 2x SMA connector for 1PPS I/O | |
| 2x SMA connector for 10Mhz I/O | |
| 1x SMA connector for GPS |
\ We will quote based on the cost per device, not the cost per port! /
Click here for list of materials
In addition to introducing products handled by Macnica,
We publish materials related to open networking, such as BGP cross network automatic construction files and network operation test evaluation reports.
Click here for details
