DELTA ELECTRONICS
Delta Electronics Co., Ltd.
![[DELTA]AGC7646V1](/business/network/manufacturers/delta/image/delta_agc7646v1_headbn.png)
It is a carrier grade white Box switch.
It is suitable for various layers where white Box utilization is expected, such as mobile access and aggregation routers. This product uses Broadcom's DNX switch IC and supports wide bandwidth and deep buffer.
Product Summary
- ToR/Leaf and EoR switches with deep buffers for data center and carrier networks
- Port configuration 48 x 10GbE SFP+, 6 x 40GbE QSFP
- Not only provides 100GE uplink ports, but also supports virtualization function
- Total I/O bandwidth is 800G with oversubscription ratio up to 1.35:1
- Comprehensive support for L2 and L3 functions

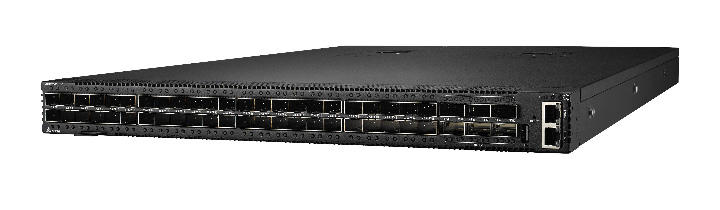

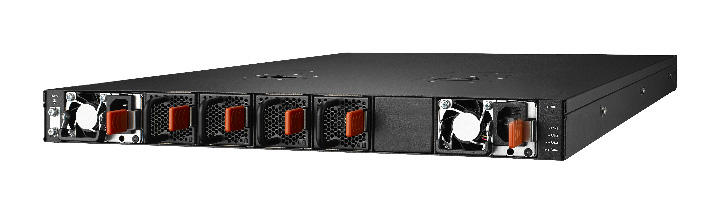

Product appearance
Product Specifications
| Ports | Key parts |
| 46 x1/10GbE SFP+ ports | Switching Chip: BCM88375 Qumran-MX |
| 6x40/100GbE QSFP28 ports | Processor: Intel Broadwell D1548 |
| 1x RJ45 Console port | Memory: 16GB DDR4 x 2 |
| 1x RJ45 100/1000BASE-T OOB | SPI-Flash: 16MB x 2 |
| Management port | Storage: 128GB m.2.SSD |
| 1 x USB port | Packet Buffer: |
| 4GB GDDR5 | |
| External T-CAM BCM52311 |
\ We will quote based on the cost per device, not the cost per port! /
Click here for list of materials
In addition to introducing products handled by Macnica,
We publish materials related to open networking, such as BGP cross network automatic construction files and network operation test evaluation reports.
Click here for details
