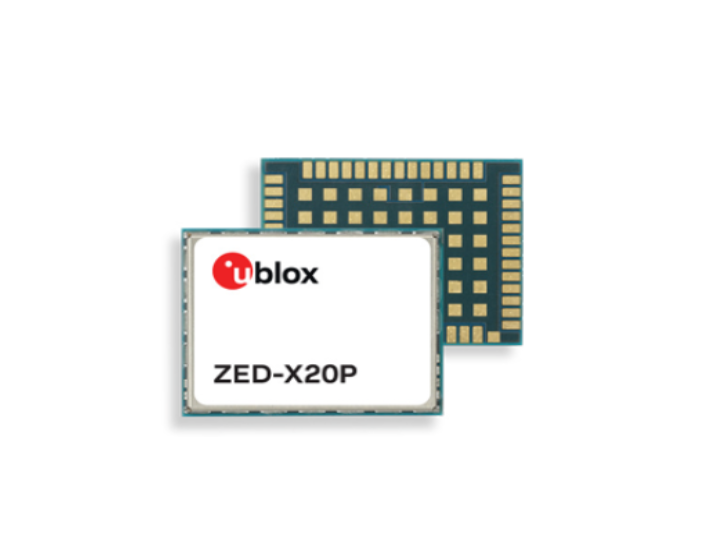

ZED-X20P
All-band GNSS receiver module
All-band receiver
- Supports L1/L2/L5/L6 to reduce multipath interference in urban areas.
・Can receive GPS, GLONASS, Galileo, BeiDou, and QZSS simultaneously
- No L6 dedicated receiver required
・Built-in flash allows firmware updates
Product overview document
data sheet
ZED-X20P Product Specifications
| product name |
ZED-X20P |
| GNSS |
GPS/GLONASS/Galileo/Beidou/QZSS |
| Support Band |
L1/L2/L5/L6 + L-Band |
| Number of satellites simultaneously received |
4 |
| Supported Interfaces |
UART x2/USB/SPI/I2C |
| flash |
〇 |
| Additional SAW |
〇 |
| Additional LNA |
〇 |
| Oscillator |
TCXO |
| minimum voltage |
2.70V |
| maximum voltage |
3.60V |
| update rate |
up to 25Hz |
Inquiry / Quotation
If you have any questions or requests for quotations regarding this product, please contact us using the form below.
