This month's featured products: Overview
Analog Devices offers a wide range of products with features that are useful in new designs.
On this page, we will introduce products that have clear features and applications and are worth knowing about during the design process as "Featured Products of the Month."
In May 2026, we will be featuring the following four products.
- AD5710R DAC: 8 channels integrated into a single chip, with switchable current/voltage output and supporting 16-bit high-precision analog output.
- AD5711R DAC: 8 channels integrated into a single chip, enabling flexible 12-bit analog control with switchable current/voltage output.
-Synchronous rectification step-down regulators with 3V to 65V input, offering both low EMI and high efficiency, and supporting up to 2.5A/3.5A output: LT80602 / LT80603

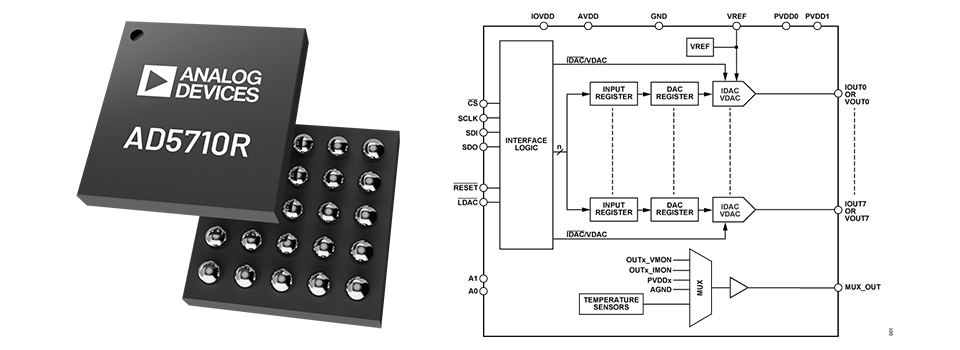

Featured Product ①: AD5710R
Product Summary
The AD5710R is an 8-channel, 16-bit DAC, a high-precision data converter in which each channel can be individually configured as either a current output (IDAC) or a voltage output (VDAC). It features an internal 2.5V high-precision reference (3ppm/°C), achieving high-precision analog output while reducing the need for external components. Flexible control is also possible via the SPI interface.
Main features
- Eight channels can be individually configured as current output/voltage output.
• High-precision analog output with 16-bit resolution
• Maximum output current drive capability of 50mA (IDAC/VDAC mode)
• Features an internal 2.5V reference (3ppm/°C).
• Diagnostic monitoring function for output voltage, output current, and die temperature.
- Control via SPI interface
• Ultra-small WLCSP package (2.1mm x 2.2mm)
Operating temperature range: -40°C to 125°C
Design advantages
The AD5710R simplifies designs for handling multi-channel analog outputs in the following ways:
- Because an 8-channel DAC can be implemented on a single chip, a multi-device configuration is unnecessary, reducing the number of components.
- Since the current/voltage output can be switched for each channel, there is no need to use different ICs for different applications.
• It has a built-in 2.5V reference, eliminating the need for an external reference circuit.
• Output voltage/current and temperature monitoring functions allow for status monitoring without additional circuitry.
Assumed application
• Optical network equipment
• Measuring instruments
Data acquisition system
• Automated testing equipment (ATE)
Process control / Industrial automation
Related information / Purchase information
• AD5710R Product Information (Manufacturer's Website)
• Evaluation board: EVAL-AD5710R (manufacturer's website)
• AD5710R purchase information (Macnica-Mouser website)
• Evaluation board: EVAL-AD5710R Purchase information (Macnica-Mouser website)

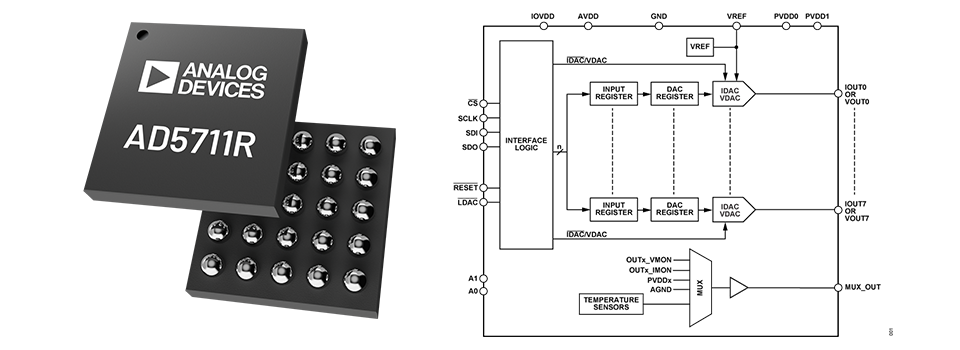

Featured Product ②: AD5711R
Product Summary
The AD5711R is an 8-channel, 12-bit DAC data converter, with each channel individually configurable as either current output (IDAC) or voltage output (VDAC). It features an internal 2.5V high-precision reference (3ppm/°C), enabling flexible analog control while reducing the need for external components. The SPI interface allows for efficient control of multiple output channels.
Main features
- 8 channels can be individually configured as current output/voltage output.
12-bit resolution DAC
• Maximum output current drive capability of 50mA (IDAC/VDAC mode)
• Features an internal 2.5V reference (3ppm/°C).
• Diagnostic monitoring function for output voltage, output current, and die temperature.
- Control via SPI interface
• Ultra-small WLCSP package (2.1mm x 2.2mm)
Operating temperature range: -40°C to 125°C
Design advantages
The AD5711R simplifies multi-channel analog control designs in the following ways:
- Because an 8-channel DAC can be implemented on a single chip, a multi-device configuration is unnecessary, reducing the number of components.
- Since the current/voltage output can be switched for each channel, there is no need to use different ICs for different applications.
• It has a built-in 2.5V reference, eliminating the need for an external reference circuit.
• Output voltage/current and temperature monitoring functions allow for status monitoring without additional circuitry.
Assumed application
• Optical network equipment
• Measuring instruments
Data acquisition system
• Automated testing equipment (ATE)
Process control / Industrial automation
Related information / Purchase information
• AD5711R Product Information (Manufacturer's Website)
• Evaluation board: EVAL-5710R (manufacturer's website)
• AD5711R purchase information (Macnica-Mouser website)
• Evaluation board: EVAL-5710R Purchase information (Macnica-Moser website)

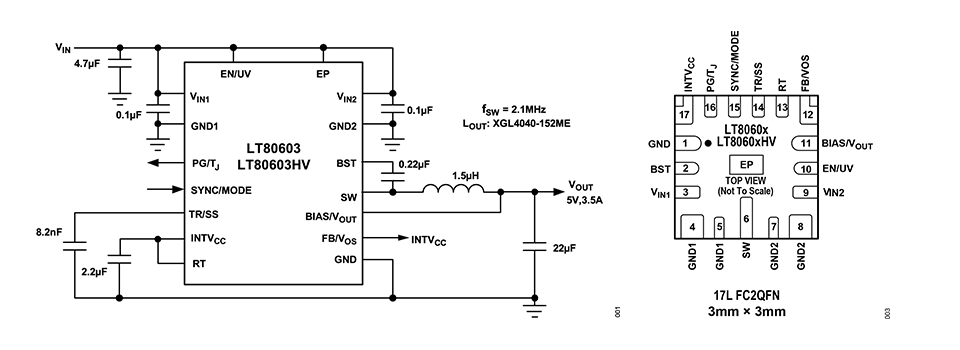

Featured Product ③: LT80602 / LT80603
Product Summary
The LT80602 and LT80603 are synchronous buck regulators supporting a wide input voltage range of 3V to 65V. The Silent Switcher® architecture enables highly efficient power conversion while reducing electromagnetic interference (EMI). Furthermore, they exhibit excellent efficiency even under light load conditions, thanks to their extremely low quiescent current of 8µA.
Main features
• Wide input voltage range of 3V to 65V
Maximum output current
- LT80602: 2.5A
- LT80603: 3.5A
• Low EMI characteristics thanks to Silent Switcher®
• High efficiency (up to 95% or more *depending on conditions)
• Quiescent current 8µA (high efficiency under light load)
• Supports fixed and variable 3.3V/5V output.
- Output voltage and die temperature monitoring function
- Supports external clock synchronization (200kHz to 3MHz)
Design advantages
The LT80602 / LT80603 simplifies power supply design for industrial and automotive equipment in the following ways:
• Silent Switcher® makes noise reduction easier, reducing the burden of filter design and layout adjustments.
• Its wide input voltage range allows for unified design across different power supply specifications using the same device.
- Low quiescent current allows for power-saving design with reduced power loss under light load conditions.
- Output voltage and temperature monitoring functions allow for monitoring of the power supply status without the need for additional circuitry.
Assumed application
General-purpose step-down power supply
Industrial equipment power supply
• In-vehicle power supply system
Related information / Purchase information
LT80602 Product Information (Manufacturer's Website)
LT80603 Product Information (Manufacturer's Website)
• Evaluation board: LT80603EVKIT (manufacturer's website)
LT80602 Purchase Information (Macnica-Mouser website)
• Evaluation board: LT80603EVKIT Purchase information (Macnica-Mouser website)
