メーカーのご紹介

社名
ReFLEX CES (リフレックスセス)

事業内容



ReFLEX CES 社は16年以上に渡ってハイエンド FPGA を搭載したハイスピードボードと高密度な組み込みシステムを設計製造してきたメーカーです。
通信、医療、産業向けはもちろん、宇宙、航空、防衛向けにも FPGA ボード、PCIe ボード、FMC ドータカード等の製品を評価試作用、COTS、MOTS として提供しております。
また VPX、OpenVPX、 CompactPCI,、VME ラック、組み込みシステム、産業用システム向けにカスタムボード製品も提供をしております。



製品紹介

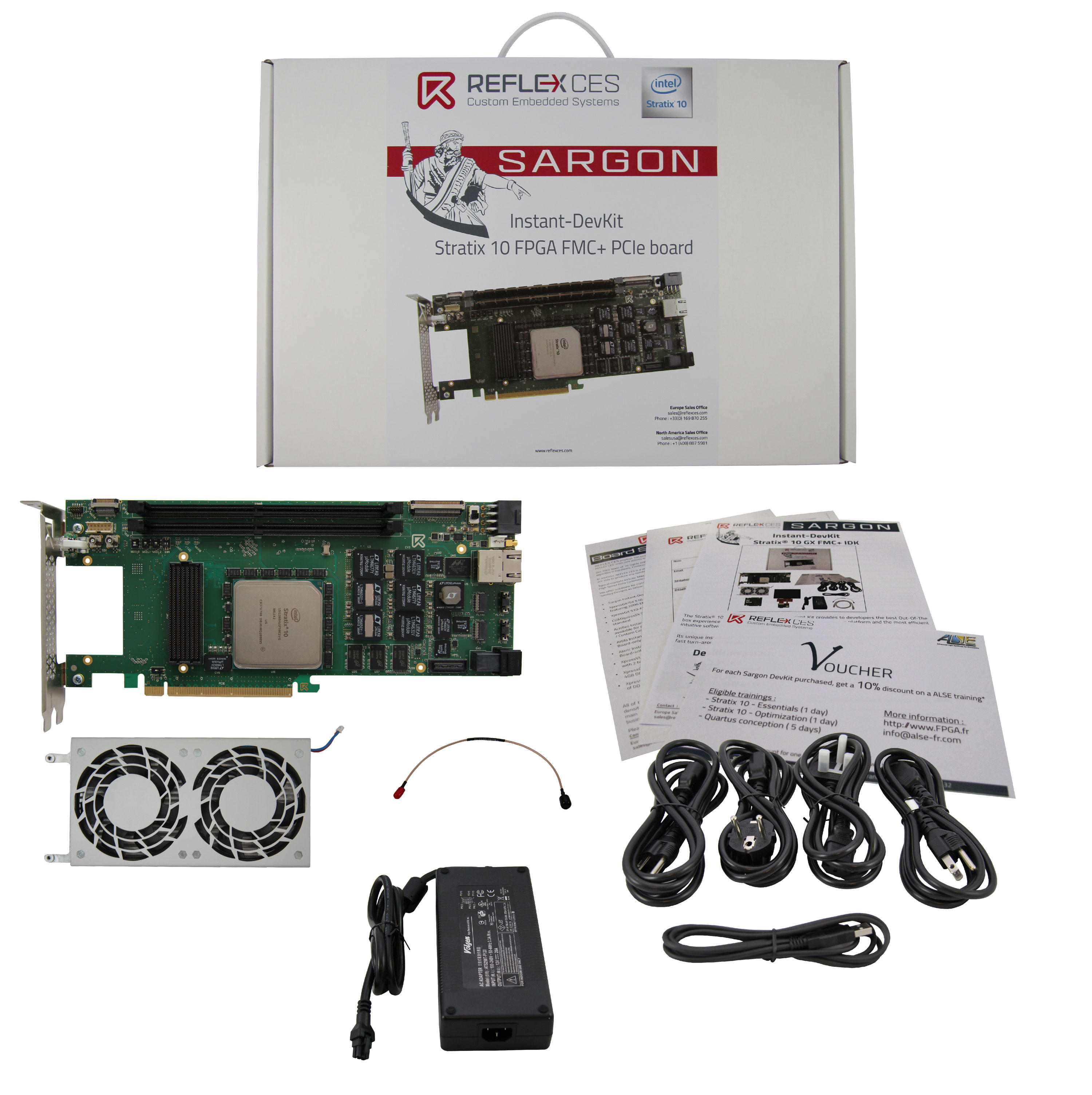

 Sargon (インテル® Stratix® 10 FPGA 搭載 Full size PCIe board)


インテル® Stratix® 10 FPGA を搭載し、業界最高水準のハードウェアと使い易いソフトウェアを提供、創造性に富む開発を実現します。
GUI やリファランスデザインを活用することで設計工数を削減可能。
COTS 対応も可能ですので、まずは弊社までご相談ください。



 COMXpressGX/SX Stratix 10 (インテル® Stratix® 10 FPGA 搭載, COM Express Type 7 対応)


インテル® Stratix® 10 FPGA を搭載した ReFLEX CES社の COM Express Type 7 対応 (125mm x 95mm ) のモジュール製品です。
HPC、アクセラレーション、インテリジェントヴィジョン、ビデオプロセッシング等に最適です。
COTS 対応も可能ですので、まずは弊社までご相談ください。



 XpressGX/SX S10-FH200G
 (インテル® Stratix® 10 FPGA 搭載 Full size PCIe Network Processing board)


インテル® Stratix® 10 FPGA を搭載した 200G イーサネット対応の HPC 、データセンター、放送機器、ネットワーク関連製品の開発および搭載に最適な PCIe ボードです。
独立した 3 bank のDDR4 、2 banks QDR2+Xtrem、2つの QSFP28 を実装しており、マルチネットワーキングが実現可能。
COTS 対応も可能ですので、まずは弊社までご相談ください。



 Attila (インテル® Arria® 10 FPGA 搭載 Full size PCIe board)


インテル® Arria® 10 FPGA を搭載した ReFLEX 社の PCIe board Attila は業界最高水準のハードウェアと使い易いソフトウェアを提供することで創造性に富む開発をお客様に実現していただくための製品です。
開発の際には GUI やレファランスデザインを活用していただくことで、最短の時間と工数で設計をサポートいたします。
COTS 対応も可能な製品ですが、是非事前に弊社までご相談ください。

紹介ビデオ:https://www.youtube.com/watch?v=avR-1raf1dQ(外部サイトに移動します)



製品チラシ

製品詳細
Deliverables
      The Arria 10 FPGA FMC IDK includes hardware such as FMC Header, on-board USB Blaster, DDR4, PCIe capabilities and much more.


  • One Arria 10 FPGA FMC IDK board ( PCIe Bracket, Active fan already mounted)
  • Power desk adapter (AC/DC) 192W, 12V, 16A
  • Power cables (US, UK, EU, JP)
  • One USB standard cable A-type to Micro USB connector, 1.8 m length
  • One Ethernet cable CAT5E RJ-45, 17,7 cm length
  • One display port cable , 1.5 m length
  • Two SMA cables, 0.25 m length
  • One 4GB sodimm module , x64 (Non ECC), single Rank, 2133 MT/s
  • One FMC loop back board
  • One Extension loop back board
  • One PCIe loop back board
  • One LCD (2 lines x 16 characters, I2C, 5V)
  • ReFLEX innovative software interface (GUI on Windows) on USB Key with
    targeted test designs* and hardware documentation
  • OpenCL BSP HPC
  • Starter Guide.
  • 12-months limited warranty

    Featured Device
  • FPGA Arria 10 GX10AX115N4F40I3SG
    (1150K LEs in F40 package FPGA / production device)
  • ROHS compliant Arria 10 FPGA PCIe FMC Instant-DevKit

    Board programming
  • Onboard JTAG configuration circuitry to enable configuration over on board
    USB blaster
  • JTAG header provided to program the MAXV and access to the Arria 10.
  • Fast passive parallel (FPP) configuration via MAXR 10 device and flash memory
  • Active Serial (AS) configuration via 128MB (1024Mb) Quad serial SPI Nor Flash
  • AS configuration for CvP support

    Memories
  • DDR4 SODIMM interface (up to 16 GB, speeds up to 1200 MHz/2400 Mbps,
    72 bits width support ECC and Non ECC)
  • 128MB (1024Mb) Quad SPI Nor Flash
  • 32Kb I2C EEPROM

    Communication & Interfaces
  • 1 x RJ45 copper connector 10/100/1000Base-T Ethernet
    (Through RGMII PHY) connected to the FPGA.
  • 1 x QSFP+ optical cage (4 XCVR: 12.5 Gb/s per link)
  • One serial over USB Bridge High speed link (through USB Hub) on front μUSB
    connector






 Alaric (インテル® Arria® 10 SoC搭載 Full size PCIe board)


インテル® Arria® 10 SoC を搭載した ReFLEX 社の PCIe board Alaric は業界最高水準のハードウェアと使い易いソフトウェアを提供することで、創造性に富む開発をお客様に実現していただくための製品です。
開発の際には GUI やレファランスデザインを活用していただくことで、最短の時間と工数で設計をサポートいたします。
COTS対応も可能な製品ですが、是非事前に弊社までご相談ください。




製品チラシ

製品詳細
Deliverables
      The Arria 10 SoC FMC IDK includes hardware such as FMC Header, on-board USB Blaster, DDR4, PCIe capabilities and much more.

  • One Arria 10 SoC FMC IDK board ( PCIe Bracket, Active fan already mounted)
  • Power desk adapter (AC/DC) 192W, 12V, 16A
  • Power cables (US, UK, EU, JP)
  • One USB standard cable A-type to Micro USB connector, 1.8 m length
  • One USB adapter USB A female / mini B male 20 cm length
  • One Ethernet cable CAT5E RJ-45, 17,7 cm length
  • One display port cable , 1.5 m length
  • Two SMA cables, 0.25 m length
  • One FMC loop back board
  • One PCIe loop back board
  • One LCD (2 lines x 16 characters, I2C, 5V)
  • ReFLEX innovative software interface (GUI on Windows) on USB Key with
    targeted test designs* and hardware documentation
  • OpenCL BSP HPC (Host-In-x86)
  • Starter Guide
  • 12-months limited warranty

    Ordering information
    Development Kit (FPGA Arria 10 SX 660) //
    RXCA10S066PF34-IDK00A
    OpenCL BSP HPC (Host-In-x86) //
    RXCA10S0000F34-BSP00B(upon request)
    OpenCL BSP HPC (Host-In-HPS) //
    RXCA10S0000F34-BSP00D(upon request)






 Achilles (インテル® Arria® 10 SoC SoM)


コンパクトなサイズ86x95 mm (3.4x3.8 inches) のボード面積にも関わらず PCIe Gen2 と 10G Ethernet のマルチギガビットシリアルプロトコルをサポートしており、簡単にプロトタイプや試作に取り組めます。
また創造的なデザインを可能にする包括的なレファランスデザインをソースコードと共に提供しております。
さらに標準の Linux と Debian をサポートしておりますので既存のアプリケーションソフトウェアから簡単に移植が可能です。COTS 対応も可能な製品ではありますが、事前に弊社までご相談ください。


製品チラシ

製品詳細


Deliverables
  • Arria 10 SoC SoM
  • Starter board Arria 10 SoC SoM
  • Schematics
  • VHDL test designs (included top level)
  • Mechanical files (3D DWF/STEP models and 2D drawing)
  • LTPowerPlay project
  • Guidelines for baseboard development (upon request)
  • Module Information (power consumption, decoupling, pairs lengths & impedances)
  • S-parameters (upon request)
  • Characterization report (upon request)

    Ordering information
  • Development Kit with SoM A10 "Ultra" version module // RXCA10S066PF34-IDK0SA
    (660 KLE, speed grade -3, commercial, 2 banks DDR4 / by 32bit / 8GBytes / @1866MT/s, eMMC 32GBytes, USB3.0, Bottom & Top connectors)
  • OpenCL BSP HPC (Host-In-x86) // RXCA10S0000F34-BSP0SB (upon request)
  • OpenCL BSP HPC (Host-In-HPS) // RXCA10S0000F34-BSP0SD (upon request)

    Processor
  • Dual ARM® Cortex® -A9 MPCore
  • Up to 1GHz
  • Enhanced with NEON Extension and Single & Double Precision Floating point unit
  • 32KB Instruction & 32KB Data L1 Cache
  • shared 512KB L2 Cache
  • 256KB on-chip Memory

    FPGA
  • Arria 10 SX,10AS066H4F34E3SG, F34 package, speed grade -3
  • Logic elements (KLEs) 660
  • M20K memory blocks 2,133
  • M20K memory (Mb) 42
  • MLAB memory (Mb) 5.7
  • GFLOPS 1,519

    FPGA & Soft programming
  • AS configuration supported with EPCQL512, remote upgrade support and failsafe functionality: AS, CvP, OpenCL support
  • eMMC 32GBytes (HPS) / Store U-boot, Kernel and RootFS(8GB on 270 KLE and 32GB on 660 KLE), HPS programming

    Control & Ios : Arria 10 SoC SoM
  • 1x USB 3.0 device connectivity using Cypress FX3 super speed controller (660 KLE density)
  • 1x USB 2.0 Device/Host
  • 1x USB OTG support connected to the HPS
  • 2x 10/100/1000 Base-T Ethernet interfaces connected to the HPS
  • 1x I2C slave interface (HPS can drive external device)
  • 1x UART connected to the HPS ( UART over USB interface)






 XpressGXA10-LP1150 (インテル® Arria® 10 FPGA express board)


XpressGXA10-LP1150 ボードは HPC やネットワーク関連製品に適した最良の Low Profile インテル® Arria® 10 GX FPGA PCIe ボードです。
こちらのボードは1 bank of DDR4 と4 banks QDR2+メモリ、さらに2つの 10GbE/40GbE によりマルチネットワーキングを実現可能です。


製品チラシ

製品詳細
Board content
  • Low-profile (half-height) form factor PCIe Board
  • PCIe standard or low profile bracket
  • XpressA10GX Board Support Package
  • Power Supply adapter cable for standard ATX server PS
  • JTAG adapter cable for external USB Blaster
  • Mechanical files(3D DWF/STEP models and 2D drawing)
  • Board S-parameter (upon request)
  • Characterization report (upon request)
  • Optional package (upon request)
  • OpenCL HPC BSP (upon request)

    Ordering Information
  • Board "Basic" version // XpressGXA10-LP1150B
  • Board "Ultra" version // XpressGXA10-LP1150U
  • Board "Turbo" version // XpressGXA10-LP1150T

    OpenCL BSP HPC // RXCA10X0000F40-BSP10B(upon request)

    FPGA and configuration modules
  • JTAG connector for external USB blaster
  • EPCQL1024 for Active Serial (AS) configuration mode (2 sectors for fail safe feature)

    Memory
    XpressGXA10 LP1150 Arria 10 GX FPGA DDR4 memory QDR2+ memory
    QDR2+ memory 10AX115N4F40I3SG “core speed grade -3” 1 x bank 4 GB DDR4 5 x memory chip 8Gbits 1 Rank datarate=1866 MT/s
    TurboXpressGXA10-LP1150T 10AX115N2F40I1SG “core speed grade -1” 1 x bank 4 GB DDR4 5 x memory chip 8Gbits 1 Rank datarate=2400 MT/s 4 x bank 72 Mbits QDR2+ 18 bits datarate = 633 MHz
    Ultra XpressGXA10-LP1150U 10AX115N4F40I3SG “core speed grade -3” 1 x bank 4 GB DDR4 5 x memory chip 8Gbits 1 Rank datarate=1866 MT/s 4 x bank 144 MbitsQDR2+ 18 bits datarate = 500 MHz

    Communication Interfaces
  • PCI Express x8 2.5/5.0/8.0 Gbps (Gen 1, 2 or 3)
  • PCI Express edge connector
  • 2 x QSFP+ Optical cage
  • 2 x 40GBASE-LR4/SR4 or
  • 2 x 4 10GBASE-LRM/SR/LR (requires QSFP splitter cable) or 1000BASE-T/TX (requires QSFP splitter cable)
  • Other protocols supported by the QSFP modules

    Other resources
  • Board capabilities extension or board-to-board connection over SAMTEC LSHM connector (LSHM-150-01-F-DH-A-S-K-TR), Board-to-board Interface (16 transceivers Rx/Tx)
  • On board programmable PLL oscillator (Si5341), highly flexible and configurable clock generator/buffer. This component provides special and high quality clock signals for high-speed transceivers and memory FPGA controller
  • The clock generator SI5341 is controlled by the FPGA through an I2C serial interface, the user can modify one of the 9 output clocks frequency between 0.0001 MHz to 750 MHz
  • On board oscillator high precision provides clock accurate 20MHz-0.05ppm

    Power Supply
  • Max 80W
  • The XpressGXA10-LP1150 is delivered with a custom passive heatsink

    Operating Range
  • 0°C to 70°C

    Board Size
  • Length : 16.77cm (6.59in)
  • Height : 6.89cm (2.71 in) / Low Profile PCIe
  • Thickness : 1.57 mm (0.062 inches) / Standard Thickness PCIe





お問い合わせ

各製品の詳細についてきましては弊社までお問い合わせください。
