Product Summary

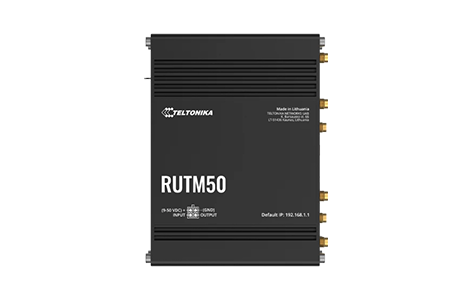

RUTM50 is a 5G-enabled industrial router provided by Teltonica. Utilizing high-speed, low-latency mobile communications, it can be used for a variety of industrial applications, including smart agriculture, in-vehicle networks, and IoT solutions.
This product has obtained technical certification for the Japanese market, so you can use it with confidence in Japan. Dual SIM support ensures communication redundancy and provides stable connections even in mission-critical environments. Furthermore, the robust housing design supports a wide range of operating temperatures from -40°C to 75°C and high humidity environments, ensuring stable operation even in harsh environments.
In addition, by linking with Teltonica's proprietary RMS (Remote Management System), remote monitoring, configuration and maintenance are possible. The status of the router installed on-site can be grasped in real time, which contributes to early detection of failures and reduction of operational costs.
Product features
RUTM50 is a 5G router that combines the robustness and flexibility required for industrial applications. It has the following features:
■ 5G communication compatible (Sub-6GHz)
It supports high-speed, low-latency 5G communications and is suitable for applications that require real-time performance, such as IoT and video transmission.
■ Dual SIM support with automatic failover
It can accommodate two SIM cards and has a failover function that automatically switches between them in the event of a communication failure, allowing you to maintain a stable communication environment.
■ Robust housing design
The aluminum housing supports a wide operating temperature range of -40℃ to 75℃, so you can use it safely even in harsh environments.

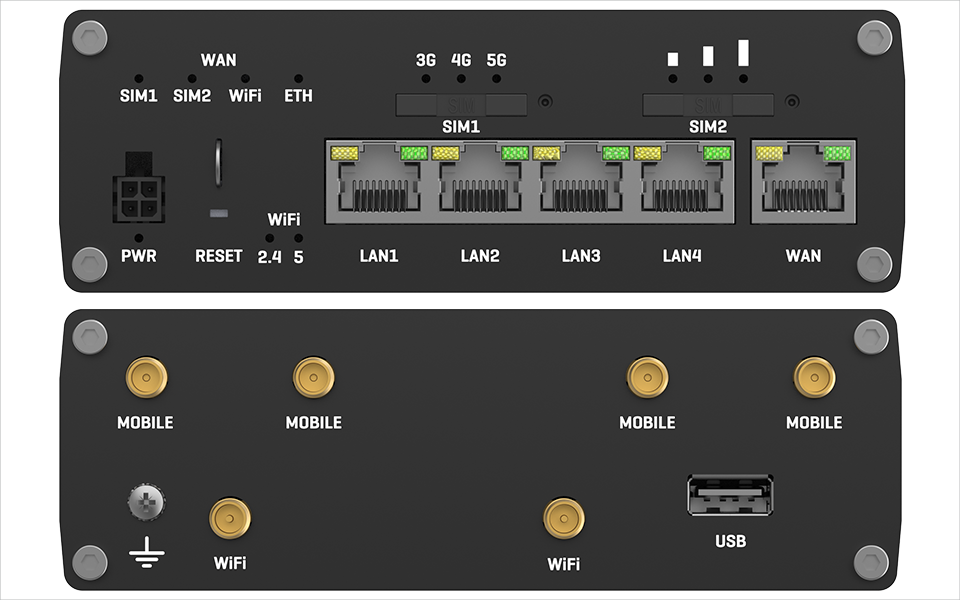

■ Various interfaces
It is equipped with a wide range of interfaces, including a Gigabit Ethernet port, USB, and digital input/output, allowing it to be connected to a variety of devices.
■ RMS (Remote Management System) compatible
By linking with Teltonica's cloud-based management system "RMS", you can monitor, configure and maintain the router remotely. You can check the router status and change the settings without having to go to the site.
■ Advanced security features
It comes standard with security features required for corporate networks, such as VPN (IPsec/OpenVPN/WireGuard), firewall, and user authentication.
basic specifications
hardware
| Mobile Network | 5G Sub-6GHz (SA/NSA compatible), 4G LTE Cat 19/18, 3G |
| CPU | MediaTek、Dual-Core、880MHz、MIPS1004Kc |
| storage | 16MB serial NOR flash、256MB serial NAND flash |
| memory | 256MB、DDR3 |
| Power Options | 4-pin power socket, 9 to 50VDC |
| SIM | 2 x SIM with auto failover |
| antenna connector |
4 x SMA for mobile |
| ethernet |
WAN × 1 |
| Wi-Fi | IEEE 802.11b/g/n/ac Wave 2 (up to 867Mbps) |
| I/O | Digital Input × 1 1x Digital Open Collector Output |
| Status LEDs | 4 x WAN types Mobile connection type × 3 Mobile connection strength x 3 10 x Ethernet Port Status Power supply x 1 2.4G & 5G WiFi x 2 |
| operating temperature | -40°C ～ 75°C |
| Dimensions (width x height x depth) | 132 × 44.2 × 95.1mm |
| weight | 519g |
| certification | Technically approved (available in Japan) |
software
| Operating System | RutOS (OpenWrt-based Linux OS) |
| Mobile Features | SIM Switch, Status, SMS, USSD, Black/White List, Multi-PDN, Band Management, SIM Idle Protection Service, APN, Bridge, Pass-Through, Frame Routing |
| Network | Supports VoIP pass-through, connection monitoring, firewall, firewall status page, port management, network topology, DHCP, QoS/Smart Queue Management (SQM), DDNS, network backup, load balancing, hotspot, SSHFS, VRF |
| routing | Static Routes Dynamic Routing (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP) Policy Routing |
| VPNs and Tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and Management | WEB UI, FOTA, SSH, Call, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Connection monitoring | Ping Reboot Wget reboot Regular reboot LCP and ICMP for link inspection |
| cloud solution | ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Hotspots |
Captive Portal (Hotspot) |
| SMS feature | SMS Status SMS settings Email to SMS SMS to Email SMS to HTTP SMS to SMS Scheduled SMS SMS Auto-Reply SMPP |
