How to visualize SNMP data using OSS ~Grafana x OcNOS~
Introduction
This article introduces how to visualize SNMP (Simple Network Management Protocol) data using the Open Source Software (OSS) Grafana dashboard.
In the 9th article, I touched on the visualization of SNMP data using OSS, using SONiC as an example. I touched on OcNOS in the 4th article, so be sure to check that out as well.
Since OSS tools are used, there is no cost, and as long as you have a server running the tools and network devices to be monitored, you can view SNMP data that used to be viewed as text as a diagram.
There are other articles related to Open Networking, so please see the articles that interest you from the "List of articles" below.
We will explain the settings of the OSS tool used to visualize SNMP data using the simple network configuration diagram below as an example.
The contents of this issue are as follows:
① Setting to use telegraf to obtain MIB information from white Box switches and store it in influxDB
② Check access to InfluxDB and Grafana
③ Grafana dashboard visualization example
We will introduce you to the following.
For an overview of the various tools, please refer to Part 9.
Simple network diagram
What is SNMP?
First, I will explain the overview of SNMP for visualization.
SNMP is an application layer protocol for monitoring and controlling communication devices such as servers and switches via a network.
It consists of an SNMP manager on the managing side and an SNMP agent on the managed side as shown below, and exchanges information such as the number of discarded packets. The SNMP manager uses UDP Port = 162 and the SNMP agent uses UDP Port = 161.
SNMP operation image diagram
MIB for data exchange in SNMP communication
Next, we will explain the MIB (Management Information Base) used to exchange information with SNMP.
MIB refers to a collection of device information held by the SNMP agent. This MIB includes information such as the number of packets received and the number of packets discarded, and by exchanging the MIB, it is possible to check the interface usage status, etc.
Additionally, the MIB has a tree structure. The information in the MIB is called an object and is assigned an OID (Object ID).

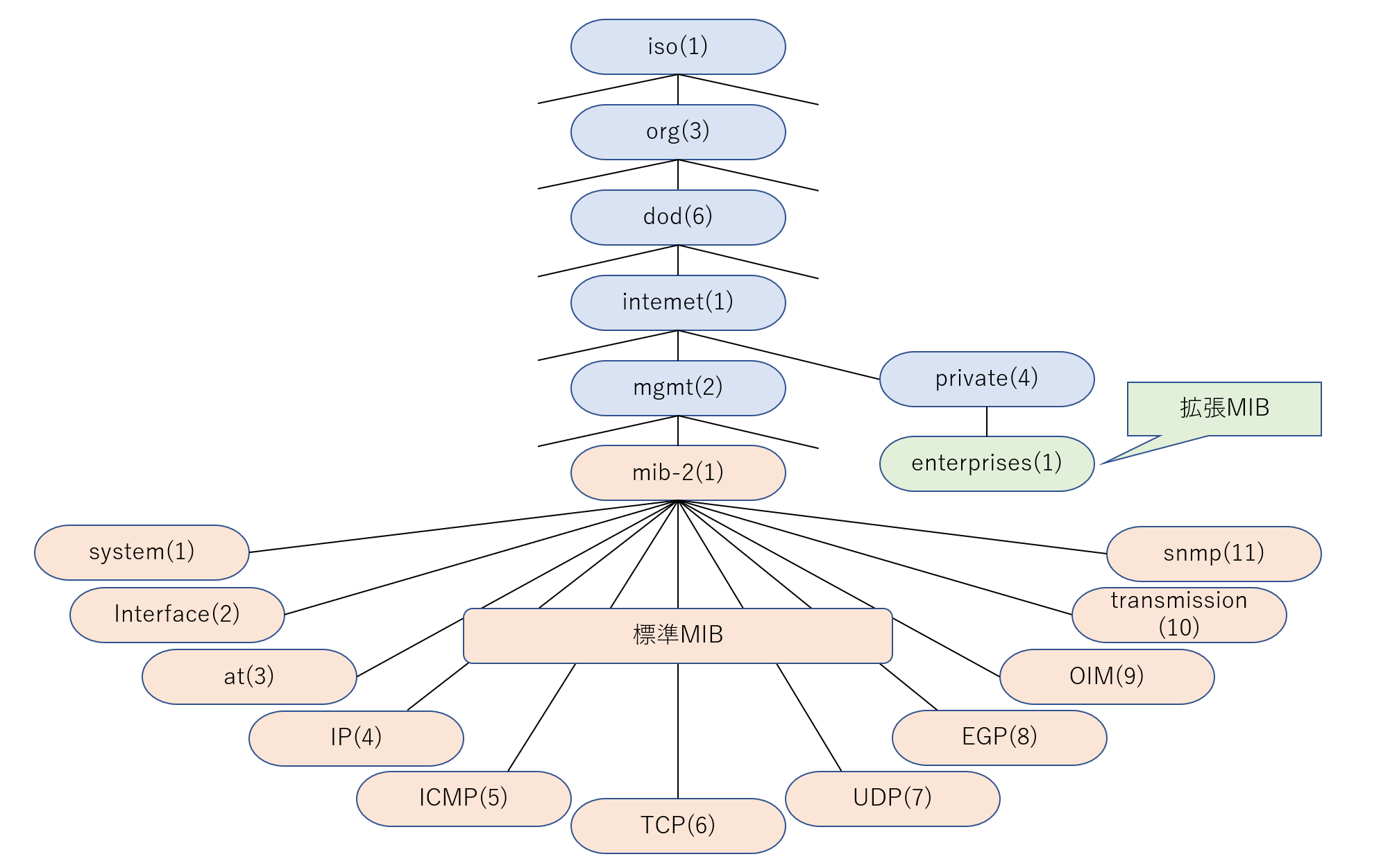

MIB tree structure diagram
For example, each object is assigned an OID as shown below.
| Object | OID | explanation |
| SysName | 1.3.6.1.2.1.1.5 | Device host name |
| interface | 1.3.6.1.2.1.2 | Various information such as interface status and traffic |
| if In Octets | 1.3.6.1.2.1.2.2.1.10 | Total number of bytes received by each Interface |
Settings for various OSS tools
Edit telegraf configuration file
Edit the telegraf configuration file (telegraf.conf) with the following command to get SNMP MIB information from the whitebox Box. If the settings are reflected correctly, the MIB information of the whitebox Box will be acquired by telegraf and saved in i nfluxDB.
$ sudo vi /etc/telegraf/telegraf.conf
* The image below is an example of editing telegraf.conf. Agent is a white Box switch that outputs MIB information. Various setting items are as follows.
interval: Interval for collecting Agent data (MIB information)
# Configuration for telegraf agent
[agent]
## Default data collection interval for all inputs
interval = "20s"
Agent data collection interval
url: influxDB url for output
database: Tool used for influxDB (telegraf)
# Configuration for sending metrics to InfluxDB
[[outputs.influxdb]]
## The full HTTP or UDP URL for your InfluxDB instance.
##
## Multiple URLs can be specified for a single cluster, only ONE of the
## urls will be written to each interval.
# urls = [ "unix:///var/run/influxdb.sock"]
# urls = [ "udp://127.0.0.1:8089"]
urls = [ "http://127.0.0.1:8086"]
## The target database for metrics; will be created as needed.
## For UDP url endpoint database needs to be configured on server side.
database = "telegraf"
Destination i nfluxDB
agents: IP of target device for data collection
timeout: Time to wait for a response after issuing a data collection request
version: SNMP version
agent_host_tag: the tag used to refer to the data host
community: SNMP community name for which you want to obtain data
retries: number of times to try retries
# # Retrieves SNMP values from remote agents
[[inputs.snmp]]
# ## Agent addresses to retrieve values from.
# ## format: agents = ["<scheme://><hostname>:<port>"]
# ## scheme: optional, either udp, udp4, udp6, tcp, tcp4, tcp6.
# ## default is udp
# ## port: optional
# ## example: agents = ["udp://127.0.0.1:161"]
# ## agents = ["tcp://127.0.0.1:161"]
# ## agents = ["udp4://v4only-snmp-agent"]
agents = ["udp://192.168.0.70:161"]
#
# ## Timeout for each request.
timeout = "5s"
#
# ## SNMP version; can be 1, 2, or 3.
version = 2
#
# ## Agent host tag; the tag used to reference the source host
agent_host_tag = "agent_host"
#
# ## SNMP community string.
community = "SNMPServer"
#
# ## Number of retries to attempt.
retries = 3
SNMP related settings – Agent IP, Timeout time, etc.
name: MIB object name
oid: OID of SNMP (this time set by name instead of number)
[[inputs.snmp.field]]
name = "sysUpTime"
oid = "DISMAN-EVENT-MIB::sysUpTimeInstance"
#
# Interfacec metrics
#
[[inputs.snmp.table]]
name = "ifTable"
oid = "IF-MIB::ifTable"
inherit_tags = [ "sysName" ]
[[inputs.snmp.table.field]]
name = "ifName"
oid = "IF-MIB::ifName"
is_tag = true
[[inputs.snmp.table.field]]
name = "ifDescr"
oid = "IF-MIB::ifDescr"
is_tag = true
[[inputs.snmp.table]]
name = "ifXTable"
oid = "IF-MIB::ifXTable"
inherit_tags = ["sysName"]
[[inputs.snmp.table.field]]
name = "ifName"
oid = "IF-MIB::ifName"
is_tag = true
[[inputs.snmp.table.field]]
name = "ifDescr"
oid = "IF-MIB::ifDescr"
is_tag = true
MIB information to retrieve–standard / extended MIB, etc.
service_address: UDP port number
# # Receive SNMP traps
[[inputs.snmp_trap]]
# ## Transport, local address, and port to listen on, Transport must
# ## be "udp://", Omit local address to listen on all interfaces.
# ## example: "udp://127.0.0.1:1234"
# ##
# ## Special permissions may be required to listen on a port less than
# ## 1024. See README.md for datails
# ##
service_address = "udp://:162"
# ## Timeout running snmptranslate command
timeout = "5s"
# ## Snmp version, defaults to 2c
version = "2c"
SNMP Trap settings – UDP Port, Timeout, SNMP ver., etc.
Start telegraf, influxDB and Grafana
Start various OSS tools on the Ubuntu server.
$ sudo systemctl daemon-reload
$ sudo systemctl start influxdb.service
$ sudo telegraf --config /etc/telegraf/telegraf.conf &
$ sudo systemctl start grafana-server.serviceCheck access to influxDB
Check if you can access influxDB by accessing http://192.168.0.80:8086 on the web.
* The version used this time does not support GUI, so 404 page not found is displayed. (The access itself is successful.)
Check access to Grafana
Check whether you can access Grafana by accessing http://192.168.0.80:3000 on the web in the same way as influxDB.
For the first access, use the User and Password below.
User: admin
Password: admin
*When you log in, you will be asked to change your password.
Grafana home screen
Grafana dashboard visualization example
Grafana By configuring a dashboard using the dashboard creation method, you can display various information about your switch, such as:
The displayed content of the visualization example below includes the following information:
① Switch activation time
② Interface link and connection information
③CPU Load information such as temperature and usage rate
④Fan speed
⑤ All traffic passing through an interface or specific packets (Unicast packets, etc.) Only traffic information
Dashboard visualization example
The above is an example of settings for obtaining MIB information of a white Box switch using SNMP and visualization of the Grafana dashboard.
In Part 11, I will introduce how to create a Grafana dashboard.
