Product Summary

25GbE Top-of-Rack (TOR) and Spine data center switches designed for high-performance computing clusters and high-frequency trading applications.
It supports 25 GbE to servers with 100 GbE uplinks and also functions as a spine switch supporting 100 GbE spine interconnects.

The Edgecore 10GbE Top-of-Rack switch is the first switch to be accepted by the OCP.
The AS5712-54X was named one of Network World's 20 Best Products of 2015. Designed for high-performance computing clusters and high-frequency trading applications, it supports 25 GbE connections to servers, comes with 100 GbE uplinks, and can also function as a spine switch supporting 100 GbE spine interconnections.

Main use cases: Data centers, Internet service providers, broadcast transmission equipment, and telecom carriers (transmission equipment)

• Data Centres
• Telecom carriers (for transmission equipment)

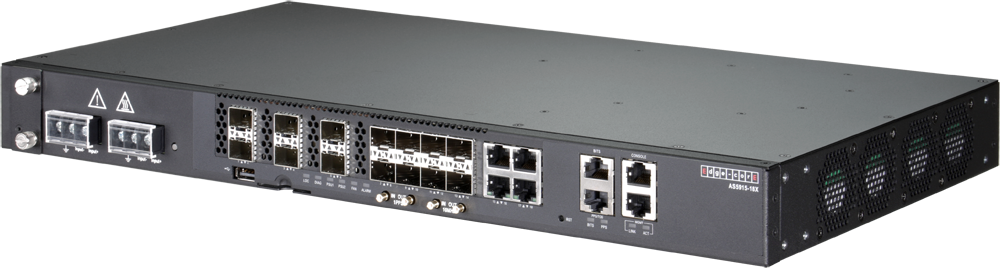

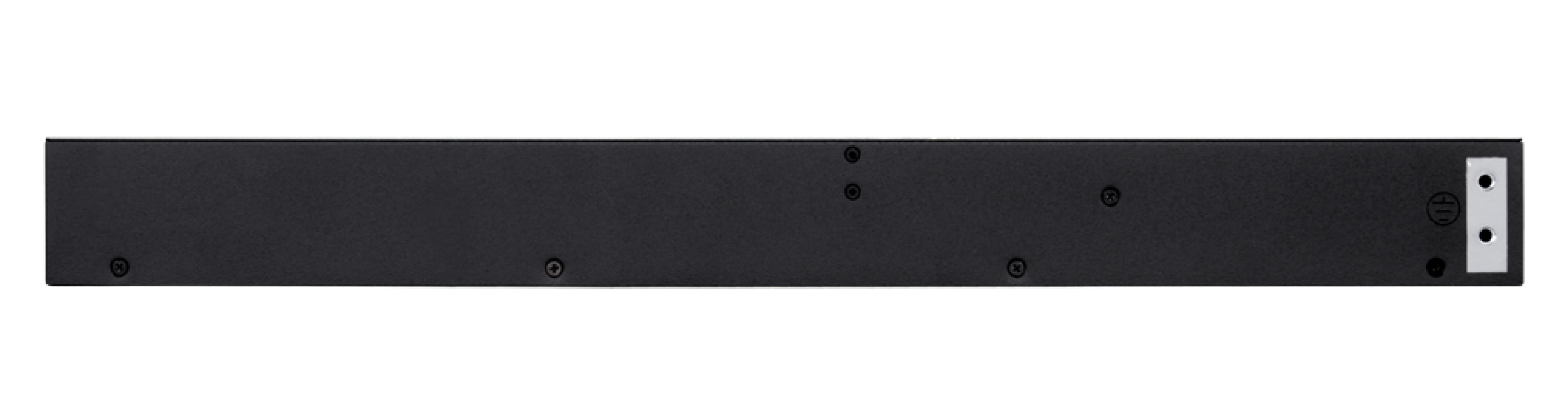

Product appearance

*The image is an example.

data center

type name	model number	Port configuration	Transfer capacity	Chip	Manufacturer page
DCS203	AS7326-56X	8 x 100G QSFP28 ports, 48 x 25G SFP28 ports	2Tbps	Trident 3	https://www.edge-core.com/jp/product/dcs203/
DCS202	AS5835-54T	6 x 100G QSFP28 ports, 48 x 10G RJ45 ports	1.08Tbps	Trident 3	https://www.edge-core.com/jp/product/dcs202/
DCS201	AS5835-54X	6 x 100G QSFP28 ports, 48 x 10G RJ45 ports	1.08Tbps	Trident 3	https://www.edge-core.com/jp/product/dcs201/

Telecom carriers (for transmission equipment)

type name	model number	Port configuration	Transfer capacity	Chip	Manufacturer page
AGR 420	AS7946-74XKSB	8 x 100G QSFP28 ports, 2 x 100G QSFP-DD ports, 64 x 10G SFP28 ports	2.4Tbps	Qumran 2C	https://www.edge-core.com/jp/product/agr420/
CSR 440	AS7535-28XB	2 x 400G QSFP-DD ports, 2 x 100G QSFP28 ports, 24 x 25G SFP28 ports	800Gbps	Qumran-2A	https://www.edge-core.com/jp/product/csr440/
AGR 120	AS5916-54XM	6 x 100G QSFP28 ports, 48 x 10G SFP+ ports	800Gbps	Qumran MX	https://www.edge-core.com/jp/product/agr120/
AGR 100	AS5912-54X	6 x 100G QSFP28 ports, 48 x 10G SFP+ ports	800Gbps	Qumran MX	https://www.edge-core.com/jp/product/agr100/
AGR 110	AS5916-54XL	6 x 100G QSFP28 ports, 48 x 10G SFP+ ports	800Gbps	Qumran MX	https://www.edge-core.com/jp/product/agr110/
AGR 130	AS5916-54XKS	6 x 100G QSFP28 ports, 48 x 10G SFP+ ports	800Gbps	Qumran MX	https://www.edge-core.com/jp/product/agr130/
CSR 300	AS7315-30X	2 x 100G QSFP28, 8 x 25G SFP28, 16 x 10G SFP+, 4 x 1G RJ45	300Gbps	Qumran AX	https://www.edge-core.com/jp/product/csr300/
CSR 310	AS7315-27X	3 x 100G QSFP28, 4 x 25G SFP28, 20 x 10G SFP+	300Gbps	Qumran AX	https://www.edge-core.com/jp/product/csr310/
CSR 320	AS7316-26XB	2 x 100G QSFP28, 8 x 25G SFP28, 16 x 10G SFP+	300Gbps	Qumran AX	https://www.edge-core.com/jp/product/csr320/
CSR 200	AS5915-18X	6 x 10G SFP+ ports, 8 x 1G SFP ports, 4 x 1G RJ45 ports	64Gbps	Qumran UX	https://www.edge-core.com/jp/product/csr200/

\ We offer the best price based on the functionality and configuration! /

Inquiries and quotes here
